How to Mirror an Image for Heat Transfer Vinyl

Roughly 40 percent of first-time HTV users ruin their initial transfer by forgetting to mirror before cutting. Learning how to mirror image for heat transfer vinyl is the single most critical step before the blade contacts the material. It separates clean, press-ready artwork from wasted vinyl and ruined garments. For a solid foundation, the guide on adhesive vinyl vs heat transfer vinyl is worth reading first — the two materials behave very differently under heat and pressure.

HTV is applied carrier-side down on the cutting mat, with the color or textured face pressed against the mat surface. The cut happens in reverse. After weeding, the design is placed face-down on the garment and heat-pressed. Without mirroring, every letter reads backwards and every directional graphic points the wrong way after the carrier sheet is peeled away.

Every major cutting platform — Cricut Design Space, Silhouette Studio, CorelDRAW, Inkscape — includes a mirror or flip horizontal command built for exactly this workflow. Skipping it is easy. Recovering from it means re-cutting the full piece from scratch.

Why Mirroring Exists in the HTV Workflow

The Physics of the Press

HTV has two distinct sides. The shiny carrier sheet faces up during cutting. The adhesive-coated color layer faces down against the mat. When the cutter scores the design, it cuts through the color layer from the underside. After weeding excess material, the piece is flipped for pressing — carrier sheet up, design face-down on the fabric. That single flip reverses the orientation of everything on the material.

A non-mirrored design exits the press reading correctly from the carrier side — but incorrectly from the fabric side. The carrier sheet is peeled away and discarded. What remains on the garment is a permanently adhered mirror image of what was intended. Heat and pressure bond that reversed design into the fiber structure of the fabric.

How Cutting Software Handles It

Most cutting platforms use the term "mirror" or "flip horizontal." Some label it "reverse." Cricut Design Space calls it "Mirror" — a toggle switch in the mat preview screen. Silhouette Studio places a flip button in the Transform panel. CorelDRAW uses the horizontal flip icon in the property bar. The command flips the design along a vertical axis before the cut file is sent to the machine.

Symmetrical artwork looks identical after mirroring. Text, numbers, asymmetric logos, and directional illustrations are where the difference becomes obvious on the mat — and where skipping the step causes the most damage.

When to Mirror — and When the Rule Breaks

Always Mirror

The standard rule is clear: always mirror when cutting HTV. This applies to standard HTV, glitter HTV, holographic, flock, stretch, and foil varieties. Any material that presses carrier-side up follows the same orientation logic. Text is the most obvious case. A name like "RYAN" cut without mirroring presses onto the shirt as "NAYR." Numbers on sports jerseys, team logos with asymmetric elements, and illustrations showing left-right direction all require mirroring before the cut file is sent.

Pro tip: Before sending any file to cut, zoom into the mat preview and read any text aloud — if it reads correctly on screen, the mirror is missing.

Exceptions Worth Knowing

A small category of HTV reverses this logic. Printable HTV — where an inkjet or laser printer deposits the design onto a white HTV base — is cut without mirroring. The printer lays a readable image on the printable surface, which faces up on the mat. Mirroring a printable HTV file produces a backwards result after pressing.

Perfectly symmetrical designs — solid geometric shapes, full-bleed patterns, abstract fills — produce the same result whether mirrored or not. Designs sourced from the vinyl cutting category often include pre-mirrored SVG files formatted for HTV workflows — always confirm before re-mirroring a file that may already be oriented correctly.

Design Types That Rely on Correct Orientation

Text and Numbers

Lettering is the highest-stakes element in any HTV cut. A single backwards character invalidates the entire transfer. Script fonts are especially deceptive — the natural flow of cursive reads convincingly in both directions until the final press reveals the error. Serif fonts with stylistic flourishes can look nearly correct at a glance, only for the reversal to become obvious once the carrier sheet is removed.

Numbers follow the same rule. Jersey numbers, addresses, and phone numbers all have fixed reading directions. A "6" mirrored becomes ambiguous. A "3" stays recognizable but reversed. Verifying number orientation in the mat preview before cutting takes seconds and prevents a full recut.

Logos and Directional Graphics

Brand logos with asymmetric elements — a swoosh pointing right, a mascot facing left — carry specific directional identities. Pressing a logo without mirroring produces a technically clean transfer that looks wrong to anyone who knows the brand. Directional illustrations — animals mid-stride, vehicles facing a specific direction, hands pointing — lose their intended meaning when reversed.

For multilayer HTV projects, every layer must be mirrored individually. The guide on how to layer vinyl with Cricut covers registration alignment for multi-layer cuts, which becomes especially critical when orientation must match across all colors after pressing.

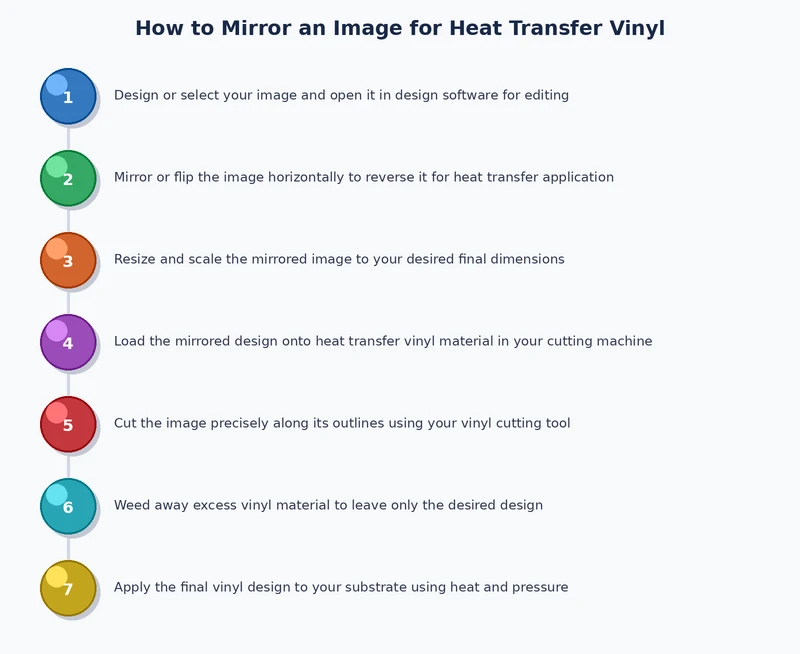

How to Mirror an Image for Heat Transfer Vinyl Step by Step

In Cricut Design Space

In Design Space, the mirror toggle appears in the mat preview — the screen that loads just before the "Go" button. Each layer of a multi-color design displays separately on the mat with its own mirror switch beside the layer name. Toggle it on, and the mat preview shows the reversed image in real time. This preview is the final checkpoint before cutting begins, and it is the most reliable place to confirm orientation.

In Silhouette Studio

Silhouette Studio applies mirroring through the Object menu or the Transform panel. Select the design, open the Transform panel, and click the horizontal flip button. The canvas updates immediately. Silhouette's page view shows the design as it sits on the mat — flipped horizontally, with text reading backwards on screen. That backwards canvas preview is the confirmation that the mirror is active and the cut is ready.

In Inkscape and CorelDRAW

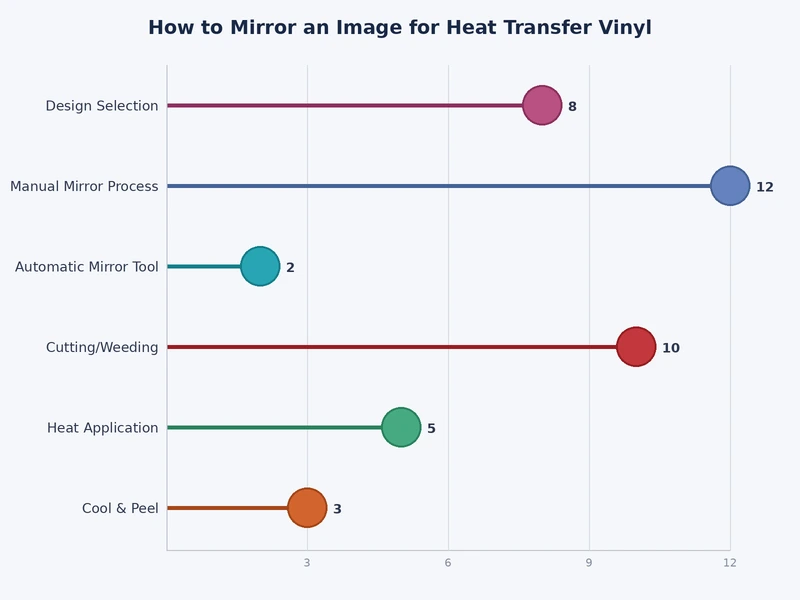

In Inkscape, the horizontal flip command is under Object > Flip Horizontal, or the mirror button in the toolbar. In CorelDRAW, the horizontal flip icon sits in the property bar when an object is selected. Both applications export the flipped artwork as a standard SVG or PLT readable by any vinyl cutter. The table below summarizes mirror command locations across the most common platforms.

Real Cuts, Real Mistakes

The Jersey Numbers That Read Backwards

A youth sports coordinator ordered 24 custom jerseys for a soccer team. The cut file was ready — player names, numbers, team logo. The operator sent the file without enabling mirror in Silhouette Studio. All 24 jerseys pressed with backwards numbers and mirrored names. The error cost a full recut of all vinyl and an additional 90 minutes of pressing time. The root cause was skipping the mat preview step entirely.

The fix was straightforward: flip horizontal in the Transform panel, re-cut, re-press. But the material and time cost was entirely avoidable with a ten-second preview check before the first cut.

The Logo Flip That Saved a Batch

A small apparel decorator was producing branded tote bags featuring a left-facing mascot logo. In the Cricut mat preview, the operator noticed the mascot was facing right on the mat — technically matching what a mirror toggle would show. Uncertain whether the file was pre-mirrored or not, the operator toggled the mirror switch off and observed the mascot now faced left on the mat. Understanding the logic confirmed the file was already oriented correctly for HTV, and the toggle should stay off. The entire batch pressed without a single orientation error.

Keeping HTV Transfers Looking Sharp Over Time

Wash Care for Pressed Garments

Properly pressed HTV is durable, but wash practices determine longevity. Turning garments inside-out before washing reduces mechanical stress on the adhesive bond. Cold water and a gentle cycle extend the life of the transfer. High-heat drying degrades the adhesive layer over repeated cycles — air drying or low-heat tumble drying is significantly gentler. Fabric softener should be avoided, as it breaks down the adhesive chemistry over time.

Direct ironing over HTV is not recommended. If pressing the garment is necessary, a pressing cloth or parchment paper between the iron and the transfer prevents reactivating and shifting the adhesive bond.

Storage of Uncut HTV Rolls

Uncut HTV rolls store best in a cool, dry environment away from direct sunlight. UV exposure degrades color saturation and adhesive strength over time. Rolls should be stored vertically or loosely rolled — never folded, as creasing the carrier sheet causes the HTV layer to separate at the fold line. Glitter and flock HTV are particularly sensitive to humidity; airtight storage containers extend their usable shelf life considerably compared to open shelving.

Frequently Asked Questions

Next Steps

1. Open the next cut file and locate the mirror command in the software being used — enable it before sending a single job to the cutter.
2. Run a test cut on a scrap piece of HTV, press it onto a cotton swatch, and confirm all text and directional elements read correctly after peeling the carrier sheet.
3. Build a pre-cut checklist with mirror verification as the final item — post it near the cutting station so no job skips the step.
4. Review any existing multilayer designs in the project library and confirm that every individual color layer has mirroring applied, not just the primary layer.
5. Browse the vinyl cutting resource section for pre-formatted HTV-ready SVG files and project guides that include mirror instructions built into the workflow.
