How to Cut and Apply Foil Vinyl With a Cutting Machine

negative spaces where a hook is too bulky to maneuver

Light pad or weeding board — backlighting reveals exactly where cut lines sit so you never have to guess

Weeding Direction Matters

Always weed foil vinyl at a low angle, pulling parallel to the surface rather than lifting straight up. Pulling upward at a steep angle stresses the metallic layer and causes it to crack along cut lines. Work slowly and pull the waste vinyl back on itself at a tight 30–45 degree angle, which keeps tension even and prevents tearing. Start at the outer edges of your design and move toward the center for the best control.

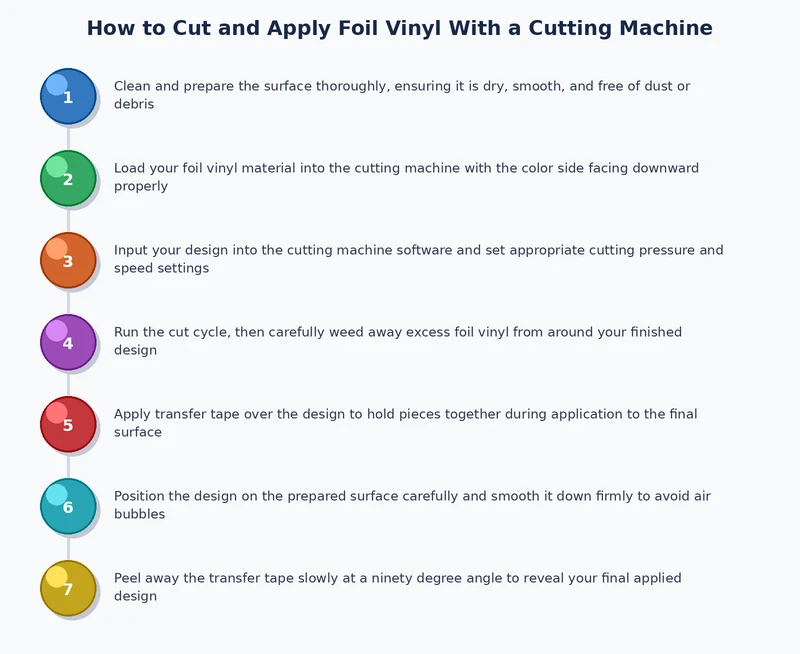

Applying Foil Vinyl Step by Step

Transfer Tape and Squeegee Technique

For adhesive foil vinyl going onto hard surfaces — tumblers, signs, laptops — you'll use standard transfer tape. Choose medium-tack transfer tape rather than high-tack tape. High-tack tape can pull the metallic layer away from the vinyl base when removed, especially on intricate designs. Cut your transfer tape slightly larger than your design and lay it over the weeded vinyl. Burnish it down firmly with a squeegee or credit card, using overlapping strokes from the center outward.

When you apply the design to your surface, use the hinge method. Tape one edge down, peel back the liner from the opposite side, and slowly lower the design while pressing with your squeegee. This technique prevents air bubbles and keeps the foil layer from creasing during application.

Heat Press vs Iron

For foil HTV on fabric, you have two options and the heat press wins every time. A heat press delivers even, consistent pressure across the entire design in one press, which is exactly what the foil adhesive needs to bond permanently. An iron creates uneven heat distribution and makes it easy to scorch or miss sections. If you're pressing a T-shirt, run 305–315°F for 10–15 seconds with firm pressure, then let it cool completely before peeling the carrier sheet.

If an iron is your only option, use a Teflon sheet on top and set your iron to cotton. Press firmly in 10-second intervals without sliding the iron. Accept that your bond won't be quite as durable as a heat press result.

Caring for Foil Vinyl Projects So They Last

Washing and Handling Tips

Foil vinyl is durable when applied correctly, but it needs a little care to keep the metallic surface looking its best. For garments with foil HTV, always turn them inside-out before washing and use cold water on a gentle cycle. Hot water and tumble drying crack and peel foil vinyl from fabric, so air-dry everything with foil on it whenever you can. Don't dry-clean foil HTV garments either — solvent chemicals degrade the adhesive layer quickly.

For hard-surface adhesive foil vinyl on tumblers or cups, hand-washing is the only safe method. Dishwashers use high heat and harsh detergents that break down the adhesive bond over time, even on vinyl that claims to be waterproof.

Storage Between Projects

Store unused foil vinyl rolls horizontally in a cool, dry location away from direct sunlight, because UV exposure yellows or discolors the metallic coating over time. Keep rolls loosely covered with the original packaging or a clean cloth to prevent dust from embedding in the surface. Avoid stacking heavy rolls on top of foil vinyl — sustained pressure creates crease marks that ruin your next cut.

Pro tip: If a foil vinyl roll has been sitting for more than six months, run a test cut on a scrap edge first — adhesives and metallic layers can degrade with age and poor storage conditions.

Frequently Asked Questions

Key Takeaways

• A foil vinyl cutting machine requires a fresh blade, a StandardGrip mat, and slightly more pressure than regular vinyl to cut cleanly through the metallic laminate layer.
• Always run a test cut before starting a full design, and weed at a low 30-degree angle to prevent the metallic surface from tearing or cracking.
• Use medium-tack transfer tape for adhesive foil vinyl on hard surfaces, and a heat press at 305–315°F for foil HTV on fabric — an iron works but the bond won't be as strong.
• Store foil vinyl rolls horizontally away from sunlight and heat, and hand-wash all finished projects to keep the metallic finish looking sharp long-term.
