How to Print a Poster Across Multiple Pages

Ever wanted a full-size poster but only had a standard home printer? The good news is that it's entirely possible to print a poster across multiple pages — a technique called tiling — and the results can look surprisingly professional. This guide covers software options, configuration settings, assembly techniques, troubleshooting fixes, and cost breakdowns. For more foundational printing knowledge, the printer how-tos and tips section is a solid starting point.

Tiling isn't a workaround — it's a legitimate technique used by home crafters, teachers, event planners, and small business owners who need large-format prints without a plotter. The printer divides a high-resolution image into a grid of standard-size sheets. The user assembles them afterward. Done right, seams are virtually invisible.

The process has three stages: preparing the image file, configuring tiling settings in software, and assembling the printed sheets. Each stage has distinct pitfalls. Getting familiar with all three makes the difference between a polished finished product and a pile of mismatched paper.

Software and Tools for Printing a Poster Across Multiple Pages

The right software makes tiling nearly painless. Several free and paid options handle this task well, each suited to slightly different workflows. Picking the right one upfront avoids reformatting headaches later in the process.

Free Desktop Options

Adobe Acrobat Reader is the most accessible starting point for most users. When printing a PDF, the Print dialog includes a "Poster" or "Tile" mode that automatically divides the document into sheets. It handles overlap settings and page labeling without any extra software installation. This works best when the source file is already in PDF format.

PosteRazor is a dedicated free tiling application for Windows, Mac, and Linux. It accepts common formats like JPEG, PNG, and BMP, then walks users through a step-by-step wizard to set output size, overlap, and paper orientation. The output is a ready-to-print multi-page PDF. For anyone working with raw image files rather than PDFs, PosteRazor is often the simplest option available.

Microsoft PowerPoint — and the free Google Slides equivalent — allows manual tiling by setting a custom slide size equal to the full poster dimensions, then printing to standard paper. It's less automated but works fine for straightforward layouts and office workflows.

Web-Based Tiling Tools

For users who don't want to install software, browser-based tools get the job done quickly with no setup required.

• Rasterbator — Uploads an image and outputs a multi-page PDF split into a customizable grid. Supports custom paper sizes and sheet counts.
• Block Posters — Minimal interface: upload an image, select how many sheets wide, download a printable PDF. Ideal for basic projects.
• PDF24 Tools — Includes a poster print feature that tiles any uploaded PDF across multiple sheets with adjustable overlap.

Getting the Best Results When You Print a Poster Across Multiple Pages

Knowing how to print a poster across multiple pages cleanly starts before a single sheet loads into the printer. The preparation phase — file resolution, color mode, and canvas size — determines most of the final quality. Skipping these steps upfront costs more time later.

Preparing Your Image File

Resolution is the first thing to verify. A low-resolution image stretched to poster size will look pixelated regardless of how good the printer is. The minimum recommended resolution is 150 DPI at the full output size. For sharp, professional results, 300 DPI is the standard target.

• Set the canvas size to the actual intended poster dimensions (e.g., 24×36 inches) before exporting — never rely on the tiling software to scale the image up.
• Save the file as a high-quality PDF or uncompressed PNG before importing into the tiling tool.
• Convert to CMYK color mode if precise color accuracy matters — many home printers handle RGB-to-CMYK conversion automatically, but manual conversion prevents unexpected color shifts.
• Flatten all layers before saving — hidden elements can affect rendering in some tiling applications.

According to Wikipedia's overview of standard poster formats, common sizes range from 11×17 inches up to 27×40 inches and beyond. Knowing the target dimensions before designing avoids having to rescale the file after the fact, which degrades image quality.

Pro tip: Always design the poster at its full final size in the source file — scaling up inside the tiling software introduces pixelation that no printer setting can fix.

Configuring Tile and Overlap Settings

Overlap is the setting most beginners skip — and it's one of the most important. An overlap of 0.25 to 0.5 inches on each sheet edge means adjacent pages share a strip of image, creating a clear alignment guide during assembly. Without overlap, even a 1mm misalignment is obvious in the finished poster.

• Set overlap to at least 0.25 inches in the tiling software settings.
• Enable sheet labels when the software supports it — each page prints a row and column identifier (e.g., A1, A2, B1) that simplifies assembly sequencing.
• Run a one- or two-sheet test print before committing to the full tile set.
• Print all sheets in a single job when possible — this keeps color calibration consistent across the entire output.

Fixing Common Problems With Multi-Page Poster Printing

Even with solid preparation, issues come up. The most common problems with tiled poster printing fall into two categories: alignment errors and color inconsistencies. Both are fixable once the root cause is identified.

Misaligned Pages and Edge Gaps

Misalignment almost always traces to one of three causes: inconsistent paper feeding, incorrect margin settings, or a mismatch between the software's overlap value and the printer's actual unprintable border.

• Check the printer's minimum margin — most printers have an unprintable border of 0.125 to 0.25 inches. If the tiling software doesn't account for this, edges get clipped and alignment fails.
• Use "Actual Size" or "Fit to Printable Area" in the print dialog rather than auto-scale — automatic scaling introduces subtle dimension errors.
• Print a single test sheet with crop marks to verify output dimensions before printing the full set.
• Feed paper manually for the first few sheets if the printer tends to skew pages — some printers grip inconsistently from the paper tray.

During trimming, a light box or sunny window is helpful. Holding two overlapping sheets up to the light makes it easy to see where the shared image strip lines up precisely. A sharp craft knife and a metal ruler give cleaner cuts than scissors every time.

Watch out: Borderless printing modes can introduce subtle scaling that throws off tile alignment — always test with standard margins enabled first unless the printer is confirmed to handle borderless tiling accurately.

Color Shifts Across Sheets

Color banding — where one sheet looks slightly warmer or cooler than its neighbor — is a common issue when tiles are printed across separate jobs. Ink levels drop during a long run, and the printer recalibrates subtly between sessions.

• Print all tiles in a single uninterrupted job whenever possible.
• Check ink levels before starting — running out mid-job almost always causes a visible color shift when the replacement cartridge kicks in.
• Use the same paper type and finish throughout. Switching from matte to glossy mid-job changes how ink sits on the surface.
• If banding persists, run a printhead alignment and nozzle check from the printer's maintenance menu before the next attempt.

Reducing paper waste during troubleshooting test rounds is a smart habit. Printing small test patches rather than full sheets saves both ink and paper. The guide on how to reduce paper waste when printing at home offers practical strategies for minimizing waste without sacrificing test accuracy.

Breaking Down the Costs of DIY Poster Tiling

One of the biggest advantages of tiling is the cost. A commercial print shop charges anywhere from $15 to $60 or more for a large-format poster. Tiling at home typically costs a fraction of that — but the savings depend on how efficiently the project is managed.

Paper and Ink Expenses

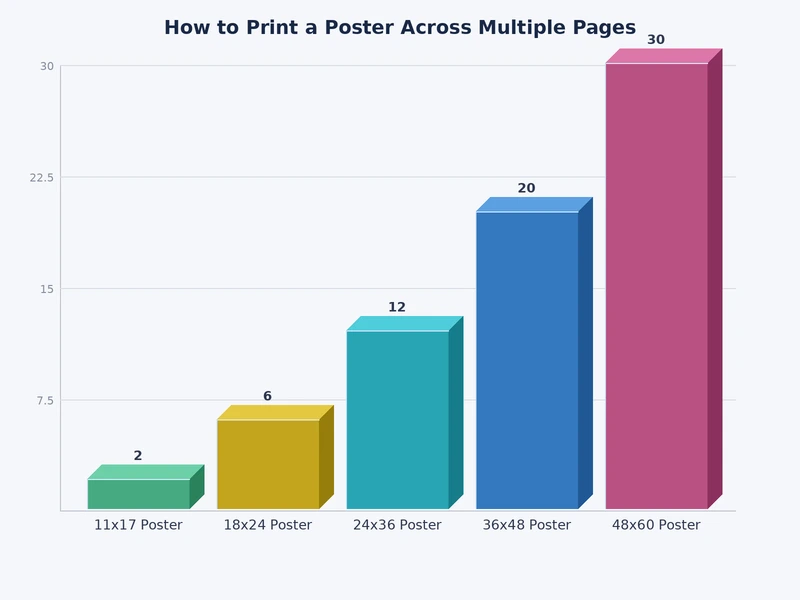

A standard 24×36 inch poster requires 12 letter-size sheets (8.5×11) in a 3×4 grid, or 6 tabloid-size sheets (11×17) in a 2×3 grid. Paper and ink costs at home typically break down as follows:

• Standard copy paper: $0.01–$0.03 per sheet
• Matte photo paper (letter): $0.15–$0.40 per sheet
• Glossy photo paper (letter): $0.20–$0.60 per sheet
• Inkjet ink cost per page at full coverage: $0.05–$0.20 depending on printer model and cartridge type

For a 12-sheet poster on matte photo paper with moderate ink coverage, total material costs typically land between $3 and $8. That compares to $30–$60 at a print shop. For repeat projects, the savings are significant.

Assembly and Mounting Supplies

The hidden cost of tiling is the assembly stage. Basic supplies needed to finish the project include:

• Craft knife and self-healing cutting mat — for clean, straight trims along overlap edges
• Metal ruler — for guided, repeatable cuts
• Repositionable spray adhesive or double-sided tape — for joining sheets without visible bumps or bubbles
• Foam core board or poster board — for mounting when rigidity is needed
• Laminating pouch (optional) — adds durability for high-traffic display environments

One-time purchases like a craft knife and cutting mat pay for themselves quickly if poster tiling becomes a recurring activity. A basic starter kit for assembly typically runs under $25 total and serves dozens of future projects.

Planning Smarter Poster Projects Over Time

Tiling gets faster and more efficient with repetition. Building reusable assets and consistent habits reduces setup time on every subsequent project and produces more predictable results.

File and Template Management

Saving a master template for each common poster size is a meaningful time-saver. A 24×36 canvas at 300 DPI with guides already set up means the design phase starts immediately on future projects without reconfiguring canvas settings from scratch.

• Store source files in lossless formats (PSD, AI, or PDF) — never overwrite originals with compressed exports.
• Name files with dimensions embedded (e.g., event-poster-24x36-v3.pdf) to avoid confusion when managing multiple versions or sizes.
• Keep a print settings log — note which overlap value, paper type, and quality setting worked best for each printer and project type. This eliminates guesswork when returning to a project months later.

For users who print frequently through Google's ecosystem, the guide on how to print from Google Docs covers print dialog settings and PDF export options — several of those tips apply directly to tiling workflows as well.

Display, Storage, and Reuse

A well-assembled tiled poster can be displayed, stored flat, and reprinted on demand. A few habits extend the usability of each project significantly.

• Laminate posters displayed in high-traffic or high-humidity areas — it protects against moisture, fingerprints, and surface damage.
• Roll rather than fold stored posters — folding creates permanent creases that remain visible through mounted displays.
• Keep the tiled PDF output file saved separately from the source — reprinting a single damaged sheet is far faster than regenerating the tile set from scratch.
• Back up source files to cloud storage so projects remain accessible across devices and locations without hunting for local copies.

Frequently Asked Questions

The secret to a seamless tiled poster isn't the printer — it's the file resolution, overlap settings, and one uninterrupted print job that make the seams disappear.
