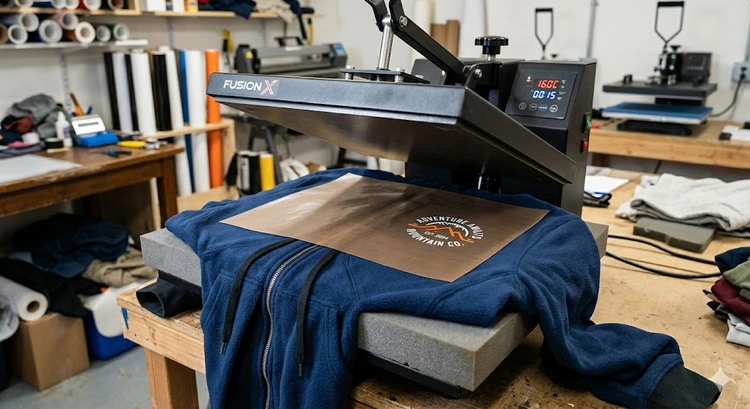

How to Heat Press on Hoodies Without Burning the Fabric

Hoodies account for nearly 40% of all scorched garment incidents reported by heat press operators, making this thick-pile substrate one of the most demanding categories in custom apparel decoration. Mastering how to heat press on hoodies without burning the fabric means getting temperature, dwell time, and pressure calibrated in tandem across a material that traps and retains heat far more aggressively than standard jersey. Our team works with cotton, cotton-poly blend, and performance fleece hoodies regularly, and the variance in optimal settings between these compositions is substantial enough to warrant a dedicated approach.

The physical structure of a hoodie introduces complications that flat garments simply don't have — bulky shoulder and waist seams, zipper hardware, ribbed cuffs, and the folded kangaroo pocket all create pressure inconsistencies across the platen surface. These inconsistencies translate directly into uneven heat distribution, which produces either over-pressed zones with shine marks and scorching, or under-pressed zones with weak adhesion and early peeling. Our team has found that addressing the physical geometry of the garment before the press closes is just as critical as dialing in the correct temperature.

For anyone choosing between transfer media for hoodies, our detailed breakdown of DTF transfers vs HTV vinyl covers the adhesion profiles, stretch characteristics, and wash durability differences that matter most on thick, high-pile fleece substrates.

How to Heat Press on Hoodies — Getting Fabric Compatibility Right

Not every hoodie is heat-press-friendly, and fabric composition is the single most important variable — it determines both the maximum safe temperature and the risk of dye migration or surface damage. Understanding which substrates are workable and which require modified technique is the foundation of a reliable hoodie decoration workflow.

Fabric Types That Handle Heat Pressing Well

Cotton-dominant hoodies and balanced cotton-polyester blends are the workhorses of the heat press market, and for good reason — both compositions tolerate the temperature ranges that most HTV and DTF transfers require without significant risk of thermal damage or surface distortion.

• 100% cotton fleece: Handles temperatures up to 330–350°F (165–177°C) with standard 12–15 second dwell times and medium-firm pressure.
• 50/50 cotton-polyester blends: Work well at 305–320°F (151–160°C), staying below the dye-sublimation threshold of the polyester component.
• 80/20 cotton-polyester blends: Behave closer to cotton, though our team applies a consistent 5°F reduction from the full-cotton setting as a reliable precaution.
• Heavyweight ringspun cotton (12+ oz): May require an extended dwell of 15–18 seconds to drive adequate adhesion through dense pile, with temperature held at the lower end of the cotton range.

Materials and Situations That Call for Extra Caution

High-polyester hoodies — particularly those above 60% polyester — carry significant dye migration risk when pressed above 270–280°F, and nylon-shell hoodies require the specialized lower-temperature approach detailed in our guide on how to heat press on nylon fabric safely. Several other scenarios warrant pausing before pressing:

• DRI-FIT and moisture-wicking shells: Synthetic performance fabrics often have low melt points and proprietary coatings that degrade under direct platen contact.
• Waterproof or DWR-coated hoodies: The coating compromises adhesion and can bubble or off-gas under heat, damaging both the transfer and the garment.
• Embossed or textured fleece: Pattern-relief surfaces prevent full platen contact, leaving void zones in the transfer that fail during the first wash cycle.
• Hoodies with existing screen prints or embroidery: Pressing over prior decoration risks adhesion interference or heat damage to the underlying ink or thread.

Weighing the Advantages and Limitations on Hoodies

Where Heat Pressing Excels

Heat pressing on hoodies delivers vibrant, durable results that most competing decoration methods can't match on thick fleece substrates — provided settings and transfer media are correctly matched to the fabric.

• Color vibrancy: HTV and DTF transfers produce sharp, vivid output that sits on top of the fleece pile without the fading common in spray or dye-based applications.
• Wash durability: Properly pressed HTV on cotton fleece consistently survives 50+ wash cycles without significant edge lifting or color shift when peel timing is correct.
• Production speed: A single operator can produce decorated hoodies at 30–60 units per hour with a reliable setup, far outpacing screen printing for short-run quantities.
• Low minimums: Heat pressing eliminates the screen cost barrier, making one-off and small-batch hoodie production economically viable in a way screen printing never is.

Pro tip: Always prepress hoodies for 3–5 seconds before applying the transfer — this flattens the pile, drives out moisture, and gives the adhesive a dramatically cleaner bonding surface on thick fleece.

Where the Process Has Real Limitations

Heat pressing is not the right answer for every hoodie scenario, and several limitations are worth acknowledging before building a production workflow entirely around it.

• Seam and hardware interference: Zipper tracks, thick shoulder seams, and pocket seams prevent full platen contact, creating void zones that require workarounds like layered silicone pads or careful garment repositioning.
• Hand feel on heavy fleece: Large HTV graphics on 12+ oz hoodies can feel stiff or plastic-y to the touch — DTF transfers mitigate this with a softer hand feel but introduce their own cost and equipment considerations.
• Polyester dye migration: As covered in our comparison of sublimation paper vs heat transfer paper, polyester fibers can sublimate their own dyes upward into a transfer layer at elevated temperatures, ghosting the image with a washed-out discoloration.
• Platen size constraints: Standard 15×15-inch platens handle chest placements well but can't accommodate full-back prints on adult XL+ hoodies without repositioning, which introduces alignment risk.

Diagnosing and Fixing the Most Common Failures

Scorching, Shine Marks, and Heat Damage

Shine marks and scorched zones on fleece hoodies are nearly always the result of excessive temperature, excessive dwell time, or excessive pressure — and in many cases, all three simultaneously. Cotton fleece flattens under high heat and pressure, producing a characteristic glossy zone even before the fiber itself scorches.

• Reduce temperature in 5°F increments until the shine disappears from test presses on scrap fabric of the same composition before touching a production garment.
• Use a Teflon sheet or parchment layer between the upper platen and the transfer to buffer direct radiant heat from the platen surface.
• Check platen calibration with an infrared thermometer gun — hot spots develop in older platens and can run 10–20°F hotter than the display readout, making calibration essential rather than optional.

According to Wikipedia's documentation on cotton fiber properties, cotton begins to discolor at sustained temperatures above 300°F and undergoes permanent structural degradation above 350°F — underscoring why calibration accuracy matters significantly more than most decorators acknowledge.

Peeling, Bubbling, and Poor Adhesion

Edge peeling and bubbling typically indicate insufficient dwell time, too-low temperature, or inadequate pressure preventing full adhesive activation across the fleece pile.

• Extend dwell time in 2-second increments rather than increasing temperature — on thick fleece, additional dwell drives adhesive into the pile more effectively than a higher temperature setting.
• Verify pressure uniformity using a thin carbon paper sheet under the platen — uneven pressure impressions indicate hardware adjustment is needed before continuing production.
• Re-press with a Teflon sheet immediately if edge lifting begins — catching it within 24 hours typically restores full adhesion without requiring transfer replacement.
• Check peel timing carefully — many HTV films on fleece require a true cold peel (fully back to room temperature) rather than a warm peel, and premature peeling is the single most common cause of edge lifting in our experience.

Dye Migration on Polyester Blends

Dye migration produces a ghosting or bleeding effect where garment base dye sublimates into the transfer layer, most visibly on white or pastel HTV films pressed over dark poly-blend hoodies at excessive temperatures.

• Drop temperature to 270–280°F maximum on any poly-dominant substrate, accepting that some HTV products won't fully cure at those lower settings.
• Use dye-blocking HTV films specifically engineered for polyester — these include a migration-blocking layer in the construction that most standard HTV products lack entirely.
• Switch to DTF transfers for high-poly content hoodies, as DTF adhesive layers are generally less susceptible to bleed-through than the base layers of standard HTV at comparable temperatures.

Our Team's Proven Techniques for Consistent Results

Preparation Steps That Matter Most

The difference between a professional-grade result and a failed transfer on hoodies almost always comes down to preparation rather than the press itself, and our team treats prep as a non-negotiable part of the production sequence for every garment.

1. Inspect for moisture — hoodies fresh from storage or shipping carry ambient humidity in the thick fleece, and moisture under the transfer prevents proper adhesive bonding.
2. Prepress at full temperature for 3–5 seconds — driving out moisture and flattening pile before applying the transfer is the single highest-ROI step in the entire process.
3. Position the garment to minimize seam interference — fold or offset the hoodie so the target print zone is as flat and centered as possible, with thick seams pushed toward the platen edges.
4. Cover with a Teflon or parchment layer before closing the press — this prevents direct platen contact with the carrier sheet and distributes pressure more evenly across the fleece surface.
5. Allow full cool-down before peel — cold peeling is safer on thick fleece than warm peeling for the majority of HTV and DTF products on the market.

Platen Configuration and Pad Selection

Platen configuration is the most underrated variable in hoodie heat pressing, and the right pad setup resolves the majority of seam-interference and pressure-uniformity problems that plague decorators working without one.

• Foam platen pad (1/4 to 1/2 inch): Provides cushioning that compensates for seam height differences, allowing the platen to conform slightly to the garment's uneven surface.
• Silicone platen pad: Heat-safe and non-compressive, ideal for placement under the garment when a seam runs directly beneath the target print zone.
• Stacked pad configurations: Layering a foam pad under a silicone pad combines the conforming benefit of foam with the heat stability of silicone, and our team uses this stack as the default setup for all hoodie runs.

For any operator exploring the full range of what a heat press can produce beyond hoodies and basic apparel, our overview of what you can do with a heat press covers the wider range of substrates and applications that share the same core technique principles.

Key Takeaways

• Temperature, dwell time, and pressure must each be calibrated to hoodie fabric composition — cotton, cotton-poly blend, and performance polyester all require meaningfully different settings profiles.
• Prepressing for 3–5 seconds before applying the transfer eliminates moisture and flattens pile, addressing the root cause of most adhesion failures on thick fleece substrates.
• Silicone and foam platen pads are essential tools for managing the seam interference and pressure inconsistencies that are structural features of every hoodie, not anomalies.
• Dye migration on polyester-blend hoodies requires either a significant temperature reduction or a purpose-built dye-blocking HTV film — standard HTV pressed at cotton temperatures will produce ghosting on high-poly substrates.

More in Heat Press & Transfers
