How to Align Printer Heads for Sharp Prints
by Karen Jones · April 17, 2026
Ever pulled a freshly printed page from the tray only to find color bands drifting left, text slightly blurred, or a diagonal ghost of cyan shadowing every black line? The fix is almost always the same: knowing how to align printer heads correctly — and running that process at the right time. Our team has executed this procedure across dozens of inkjet models, from budget Canons to wide-format Epsons, and we're confident that alignment is the most consistently overlooked maintenance step in any print workflow. Everything in this guide connects to our broader printer how-tos collection for anyone building a reliable home or studio setup.
Print head alignment is the process of calibrating each ink nozzle row so that color passes land exactly where they belong — not a fraction of a millimeter off-axis. On modern inkjets, tiny piezoelectric or thermal actuators fire droplets at precise intervals. When those intervals drift, colors misregister and fine detail smears into soft mush. This is distinct from a clogged nozzle problem, which requires a different fix entirely — and that distinction matters enormously in practice.
The good news: most printers include a fully automated alignment routine accessible from the driver software or the printer's own control panel. Our team's default recommendation is to run it before any critical print job, after replacing a cartridge, or whenever streaky lines appear when printing without an obvious cause. The process takes under three minutes and costs almost nothing in ink.
Contents
What Every Technician Keeps Nearby Before Alignment
Alignment requires almost no external equipment. The printer itself handles calibration through firmware. What matters is making sure conditions are right before starting — wrong paper or a dirty scanner glass will produce worse output than no alignment at all.
Built-In Alignment Utilities
Every inkjet printer manufactured in the last decade ships with a built-in alignment routine. Access points vary by brand:
- Epson: Maintenance tab in Epson Printer Utility → Print Head Alignment
- Canon: Maintenance tab in printer driver → Auto Align Print Head
- HP: Printer Software → Printer Maintenance → Align Print Cartridges
- Brother: Control panel → Ink → Alignment

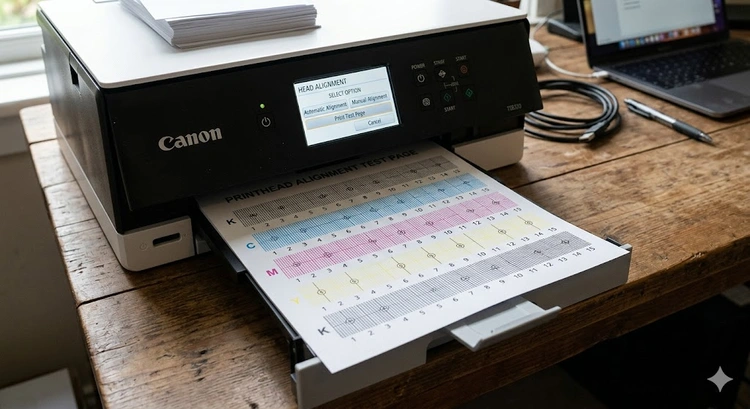

The printer outputs a calibration sheet, then either scans it automatically (on models with flatbed scanners) or prompts for manual pattern selection. Our team always uses the automatic scan method when available — it eliminates subjective human error. According to Wikipedia's overview of inkjet printing technology, print head positioning tolerances can be as small as a few micrometers, which is precisely why manual eyeballing is unreliable on modern hardware.
When to Add Manual Tools
Manual tools enter the picture only in edge cases: wide-format printers without onboard sensors, older models whose firmware alignment routines have degraded, or specialty media that confuses the optical scanner. In those situations, a 10x–20x loupe magnifier helps verify dot placement on the calibration sheet. A color-accurate monitor calibrated to sRGB is useful for cross-referencing output quality after the fact. For most home and small office inkjets, neither tool is necessary — the built-in routine is entirely sufficient.
Pro tip: Always run a nozzle check pattern before the alignment routine — misaligned nozzles and clogged nozzles produce nearly identical symptoms, but they require completely different fixes.
How to Align Printer Heads: Fast Fixes That Work
When print quality drops suddenly, our team follows a strict two-step diagnostic before touching any advanced settings: nozzle check first, alignment second. Running alignment on clogged nozzles produces incorrect calibration data that makes output worse, not better.
Running Automatic Alignment

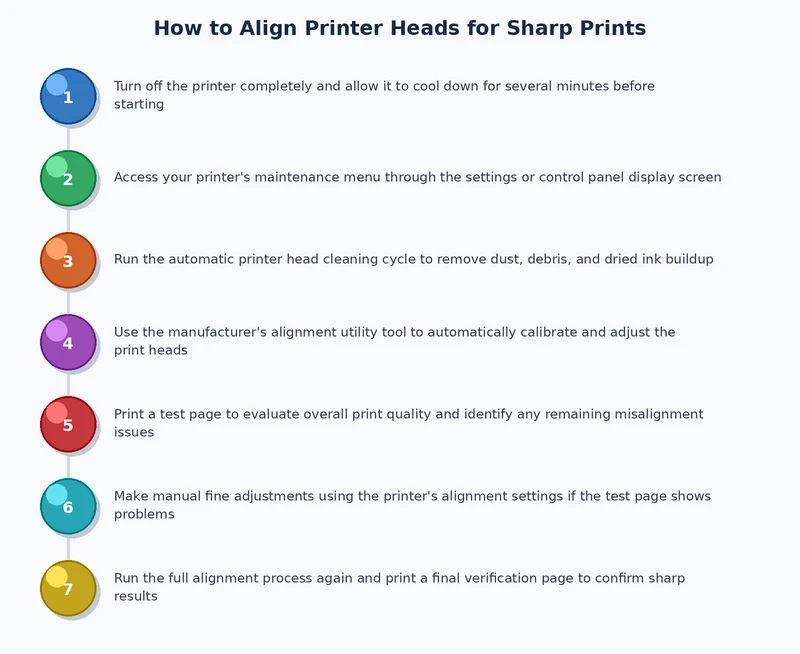

The automatic alignment sequence for most inkjets follows this pattern:
- Load plain white paper (letter or A4) — glossy paper confuses the optical sensor
- Open the printer driver or control panel utility
- Select "Align Print Heads" or the equivalent option
- Let the printer output the calibration sheet and scan it automatically (30–90 seconds)
- Print a standard test page to confirm the results held
Our team runs this after every cartridge swap without exception. It takes less time than reprinting one bad sheet, and the ink cost is genuinely trivial. For anyone trying to stretch consumable budgets further, our full breakdown of fixing faded prints on an inkjet printer covers the overlap between alignment issues and ink depletion symptoms in detail.
Nozzle Check First, Always
A nozzle check pattern prints a grid of fine lines across every nozzle channel. Gaps in those lines indicate blockages — and blockages masquerade as alignment problems constantly. If gaps appear, run one head cleaning cycle. One. Not three back-to-back. Over-cleaning wastes ink and can introduce air bubbles into the nozzle channels. After a single cleaning, re-run the nozzle check. Only when lines are solid and continuous should alignment proceed.
What Most People Get Wrong About Alignment
Misinformation about how to align printer heads circulates freely on forums and in manufacturer support threads. Two myths come up so often that our team addresses them proactively with anyone new to printer maintenance.
The Reinstall-the-Cartridge Myth
The most common bad advice: "just remove and reinsert the cartridge." This does nothing for alignment. Cartridge removal can trigger a small automatic alignment on certain Canon models, but that's a firmware coincidence — not a result of the physical reinstall accomplishing anything mechanical. Alignment is about nozzle firing timing and optical sensor calibration. Our team stops recommending this fix to anyone the first time it's suggested.
Warning: Running multiple head cleaning cycles back-to-back to fix what looks like an alignment problem can permanently damage the print head by starving it of ink — run one cycle, wait, then reassess before continuing.
Alignment vs Cleaning Confusion
Alignment and cleaning are separate operations targeting separate problems. Alignment fixes positional drift — where ink lands. Cleaning fixes flow problems — whether ink reaches the page at all. Most people conflate the two because the symptoms overlap: blurry output, color fringing, faint or missing lines. The diagnostic is simple: if the nozzle check shows solid, unbroken lines but output is still misaligned, alignment is the issue. If the nozzle check shows gaps or missing segments, cleaning comes first. This distinction is non-negotiable in any serious print workflow.
The Real Ink and Time Cost of Alignment
Alignment is inexpensive in absolute terms, but repeated unnecessary cycles do add up — particularly on high-cost cartridge systems. Here's what the actual numbers look like across common home printer scenarios.
Per-Alignment Ink Usage
| Printer Type | Ink Used Per Alignment | Approx. Cost (standard cartridges) | Time Required |
|---|---|---|---|
| Entry-level inkjet (4-color) | 0.5–1 ml | $0.05–$0.15 | 1–2 min |
| Mid-range photo inkjet (6-color) | 1–2 ml | $0.15–$0.40 | 2–3 min |
| Wide-format inkjet (8+ color) | 3–6 ml | $0.50–$1.20 | 3–5 min |
| All-in-one with auto-scan alignment | 0.5–1.5 ml | $0.08–$0.25 | 1–3 min |
These numbers confirm what our team has maintained for years: regular alignment is cheap. The cost of skipping it — wasted photo paper, failed craft transfers, reprinted documents — is dramatically higher. For anyone weighing the broader economics of inkjet vs toner ownership, our analysis of toner vs ink cost per page covers the full picture with real cost-per-print data.
When to Stop and Call a Technician
If two complete alignment attempts — each preceded by a proper nozzle check — fail to improve output, the problem is likely mechanical rather than calibration-related. Worn carriage belts, damaged print head assemblies, and encoder strip contamination can all cause persistent misalignment that no software routine corrects. At that point, the decision shifts to repair versus replace. For printers under $200, replacement usually wins on cost grounds. For wide-format units valued above $500, a technician visit is worth the diagnostic fee.
Automatic vs Manual Alignment Compared
Most home users never need manual alignment. But for specialized workflows — particularly photo printing and craft production — understanding when to override automatic calibration is genuinely useful knowledge.
Automatic Mode
Automatic alignment uses the printer's built-in optical sensor to scan the calibration pattern and compute corrections without human input. It's faster, more consistent, and eliminates operator error. Our team uses automatic alignment in the overwhelming majority of cases. The only limitation: it requires a functioning scanner unit, which dedicated photo printers without a flatbed don't always include.
Manual Software-Based Adjustment
Manual alignment presents a series of numbered test patterns. The operator selects the pattern that appears most centered or continuous for each axis. This method works on printers without onboard scanners and gives granular control over bidirectional alignment — critical for fast print modes where the head fires ink on both left-to-right and right-to-left passes. Anyone producing precision craft cuts or heat press transfers benefits from understanding this mode. It pairs well with solid media handling fundamentals — a clean paper path, which our guide on cleaning printer rollers covers in full, removes one more variable from the equation before calibration begins.
When Alignment Has the Highest Impact
Not every print job has the same sensitivity to positional drift. A text document tolerates slight misregistration without visible degradation. A fine art photograph or a sublimation transfer does not — the margin for error collapses to near zero.
Photo and Fine Art Printing
Photo printing exposes alignment drift immediately. Color fringing — a faint colored halo around sharp edges — appears when two ink channels land even a half-millimeter apart. Our team runs an alignment check before any photo print session involving premium media. The cost of one alignment cycle is negligible against a sheet of fine art paper running $2–$5 per sheet. For anyone producing large photos at home without losing quality, print head alignment is the first checkpoint before any session begins — not an afterthought when something looks wrong.
Crafts, Transfers, and Vinyl Projects
Heat press transfers, sublimation prints, and printable vinyl work all require tight registration — especially when designs incorporate multiple color layers or precise outlines along cut lines. A misaligned print head on a sublimation job means cyan ghosts to the right of the yellow channel, and the final pressed transfer looks amateurish regardless of the design quality. Our team treats alignment as a mandatory pre-flight check on any production run involving specialty media. Skipping the three-minute routine on a craft batch routinely destroys finished products that cost far more in materials than the alignment would have in time.
Insider observation: Bidirectional alignment — often listed separately in driver utilities as "Bi-D Alignment" — has a larger impact on fast draft-mode print quality than standard alignment does, and most people never touch it despite it being the first thing to drift.
Frequently Asked Questions
How often should print head alignment be run?
Our team recommends running alignment after every cartridge replacement, after any printer firmware update, after physically moving the printer to a new location, and whenever print quality degrades noticeably. For high-volume photo or craft workflows, running it at the start of each production session is standard practice and adds less than three minutes to setup time.
Does print head alignment fix streaky prints?
Not directly. Streaky prints typically indicate clogged nozzles rather than positional drift. The correct sequence is: run a nozzle check, clean if necessary, then align. Running alignment on a printer with partially blocked nozzles produces inaccurate calibration data and can make output quality worse overall.
Can alignment be run on a laser printer?
Laser printers use toner drums and transfer belts rather than liquid ink nozzles, so the alignment process is fundamentally different. Most color laser printers handle registration automatically through drum calibration cycles. Manual calibration pages exist for multicolor laser units, but the process differs significantly from inkjet head alignment both in method and in what it corrects.
Does alignment use a lot of ink?
No. A single alignment cycle on a standard 4-color inkjet uses approximately 0.5–1 ml of ink — roughly equivalent to one or two test prints. The cost is genuinely negligible, and our team has never encountered a situation where conserving alignment ink was worth the trade-off in print quality on any job type.
What happens if automatic alignment fails or produces an error?
If the printer reports an alignment error or the calibration sheet scans incorrectly, the most common causes are: wrong paper type loaded (glossy instead of plain white), a dirty scanner glass on the flatbed, or a partially clogged nozzle distorting the calibration pattern. Our team resolves most automatic alignment failures by cleaning the scanner glass first, then re-running a nozzle check before attempting alignment again.
Is print head alignment the same as print head cleaning?
No — these are separate operations. Alignment corrects where ink lands on the page (positional calibration). Cleaning removes dried or thickened ink blocking the nozzles so ink can flow to the page at all (flow restoration). Running alignment on a printer with clogged nozzles produces inaccurate calibration data. The rule is simple: clean first, verify with a nozzle check, then align.
Sharp prints aren't luck — they're the result of three minutes spent on alignment before anyone presses print.
 |  |  |  |
